Transdutores Phased Array

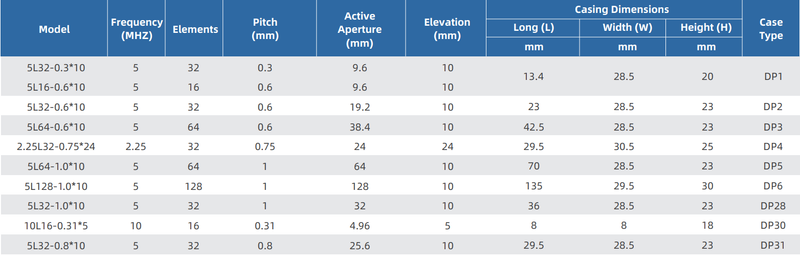

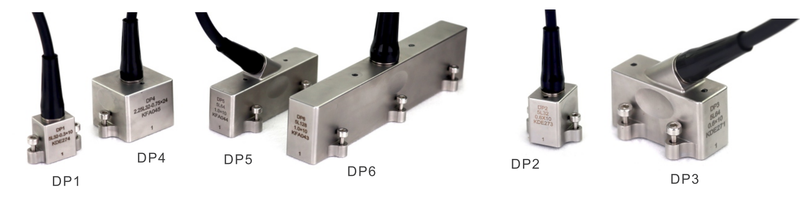

Linear Array Series
Features · Conventional array probe, standard series for phased array instrument · Applicable to most conventional scenarios Applications · Power: conventional Welding Inspection, Pressure Vessels, Oil Refineries, etc · Aviation / Aerospace: Welding, Landing Gears Inspection · Automotive: Engine Parts, Frames, Axles, Brake Discs. · Conventional: Welding, Forgings, Castings, Pipes, Bridges & Construal Steels

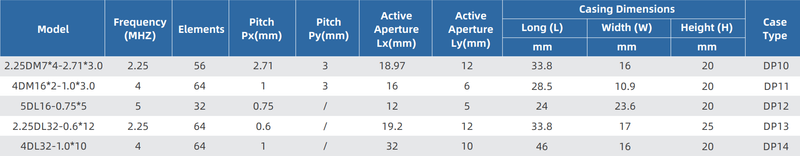

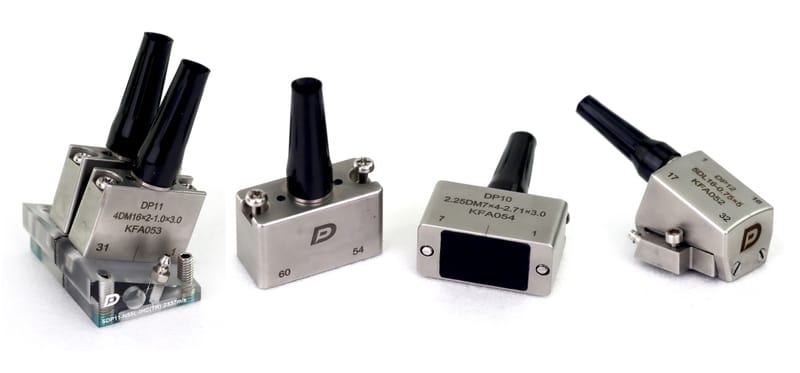

DLA/ DMA
Features •The probe is designed in a pulse and receive mode, which greatly optimizes the surface resolution of the workpiece to be tested and has a very small surface blind area •Compared with conventional dual-crystal probe, it has larger coverage, better imaging effect and better signal-to-noise ratio

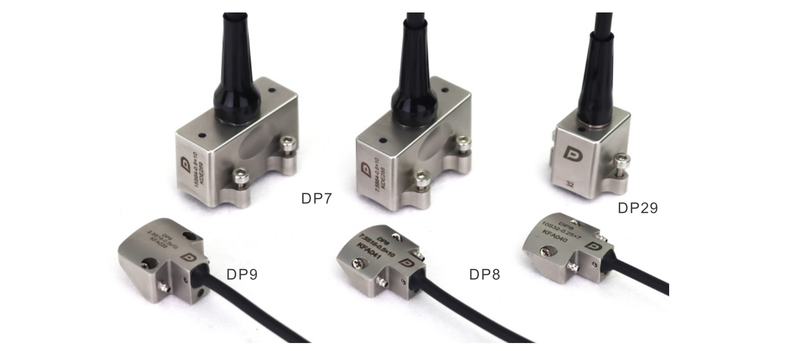

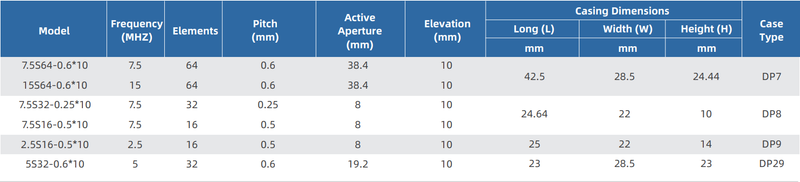

Laterally Focused Array
Features · The element is bent in the length direction to form focused beam on secondary axis · Can be used for automatic / semi-automatic scanning of pipes with diameter of 20mm-115mm in combination with Doppler scanner Applications · Power: Conventional Welding Inspection, Pressure Vessels, Oil Refineries, etc · Aviation / Aerospace: Welding, Landing Gears Inspection · Automotive: Engine Parts, Frames, Axles, Brake Discs · Conventional: Welding, Forgings, Castings, Pipes, · Bridges & Construal Steels
