Scanners

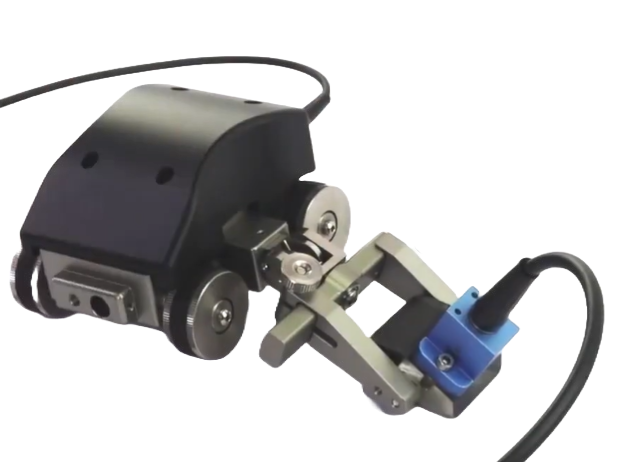

Mouse Scanner MOS 01

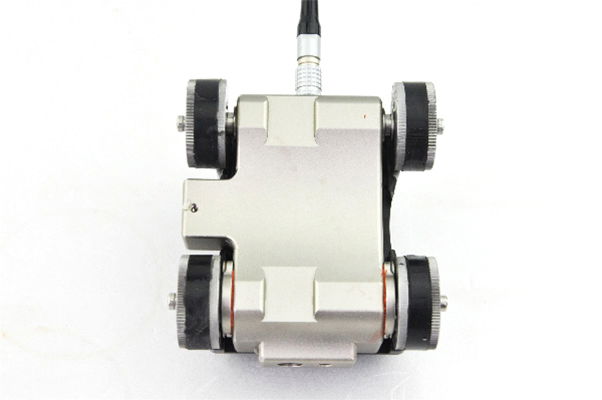

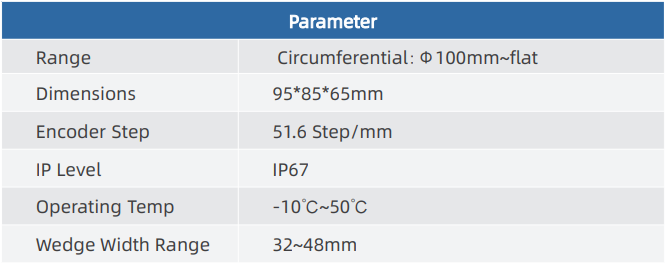

MOS-01 Mouse Type Girth Weld Scanner Doppler MOS-01 Mouse Type Scanner is designed for recordable inspection of circumferential above Φ100mm Pipe Girth Welds and Plate Butt Welds by using PA Probe.

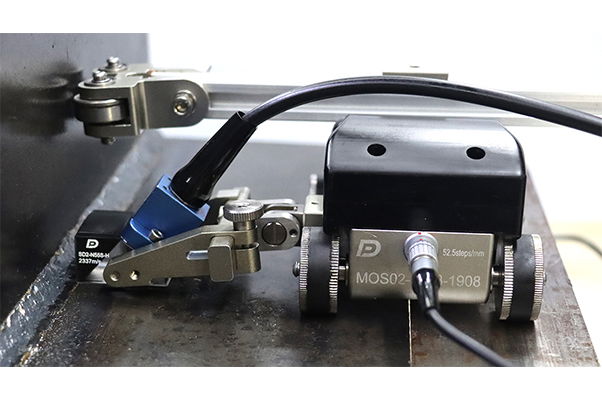

Mouse Scanner MOS 02
MOS-02 Mouse Type TKY Conner Weld Scanner Doppler MOS-02 Mouse Type Scanner is designed for recordable inspection of TKY Conner Welds by using Single Phased Array Probe. Wedge width range: 22mm~42mm.

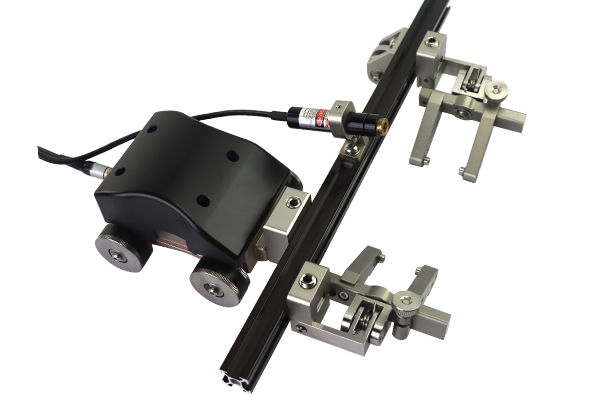

Mouse Scanner MOS 03
MOS-03 Mouse Type PA/TOFD Dual Probes Scanner Doppler MOS-03 Mouse Type Scanner is designed for bilateral simultaneous inspection of Plate Butt Welds by using Dual Phased Array Probes, or single group of TOFD inspection.Equipped with a Laser Guide, to ensure when traveling along the weld center-line during inspection.Wedge width range: 22mm~42mm.

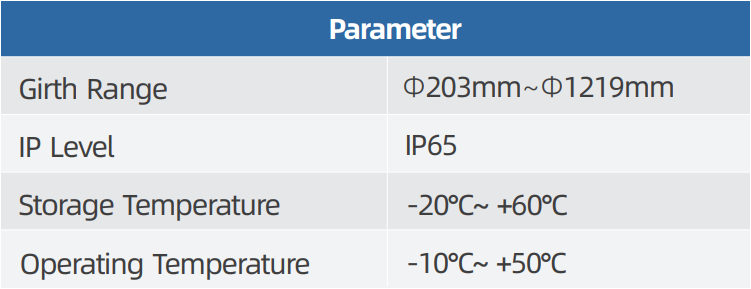

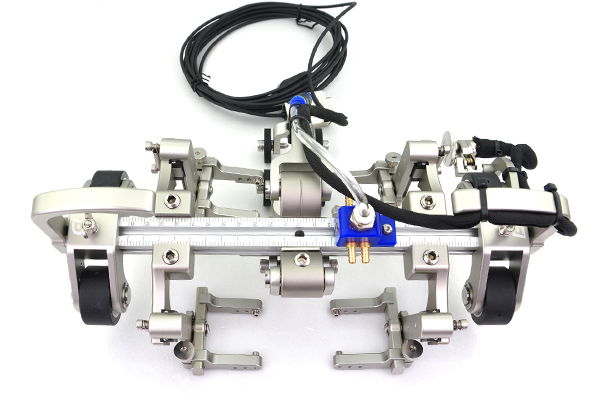

Mouse Scanner MOS 04

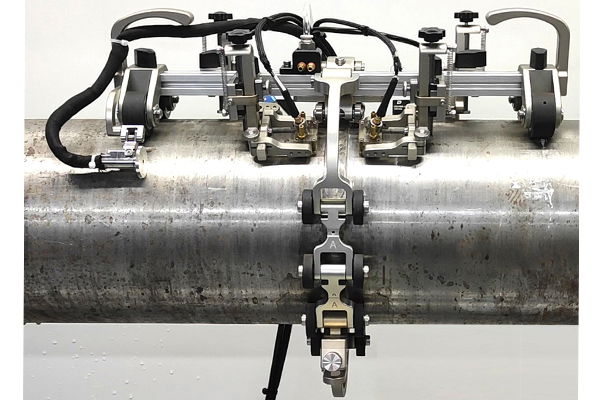

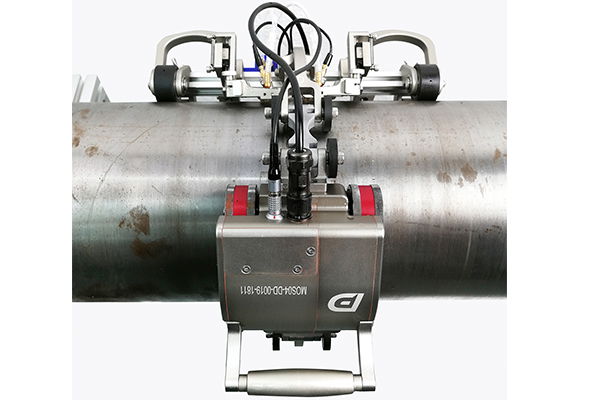

MOS-04 Chain Scanner for Large Pipelines MOS-04 is suitable for circumferential circumferential weld detection of large diameter pipe. The scanner is easy to assemble and operate, and can be quickly disassembled. MOS-04 scanner can clamp two PA + two TOFD probes simultaneously for weld scanning. It is suitable for circumferential weld scanning of large pipes with diameter ranging from 8"(203mm) ~ 48"(1219mm). The scanner with manual or automatical operation options. Wedge width range: 22mm-42mm.

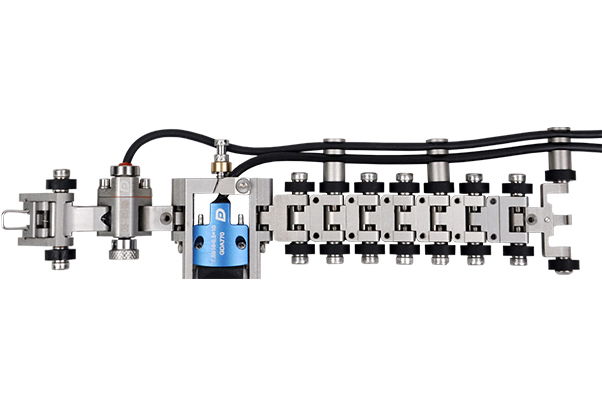

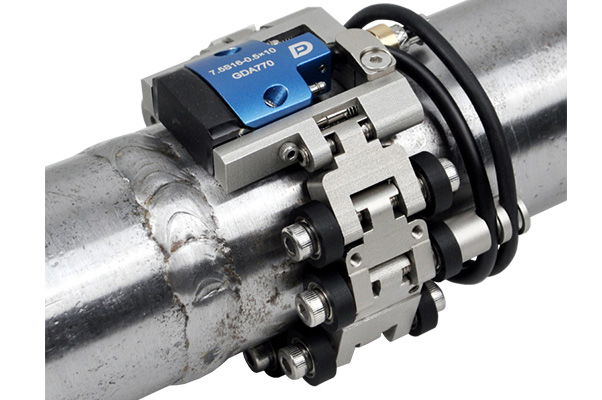

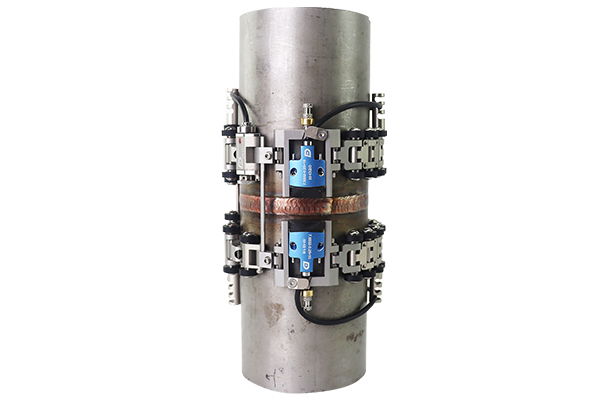

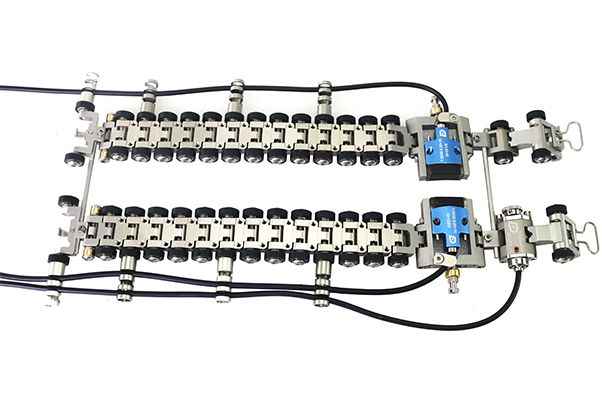

Scanner para pequenos diâmetros
CRS-07 SIMPLES CRS-08 DUPLO

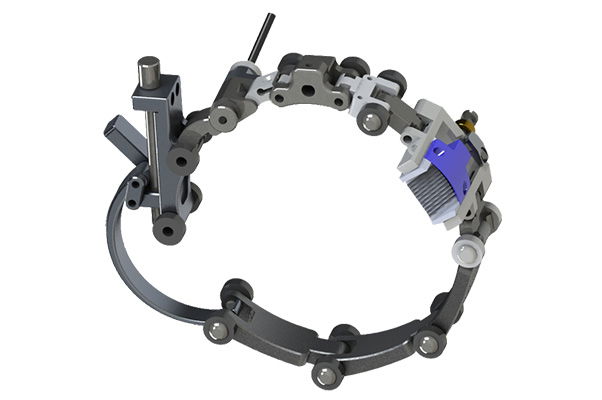

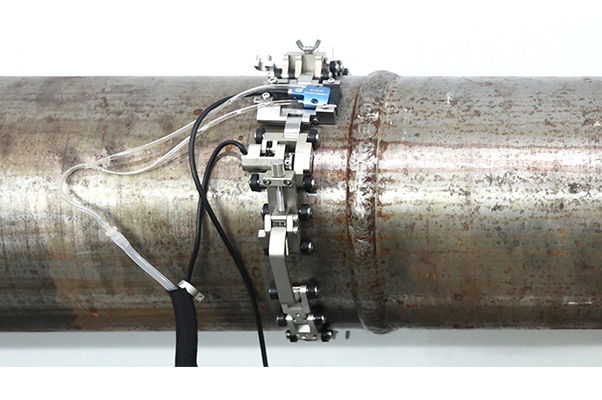

CRS-25
CRS-25 Chain Scanner Applicable range OD50-300mm middle and small diameter circumferential butt girth weld phased array detection，can choose a single PA probe detection and two probe bilateral detection according to the detection requirements; chain section can be quickly disassembled and assembled, easy to operate.

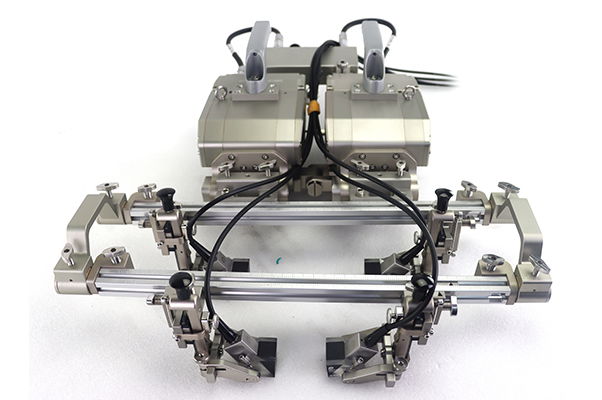

DSC-28

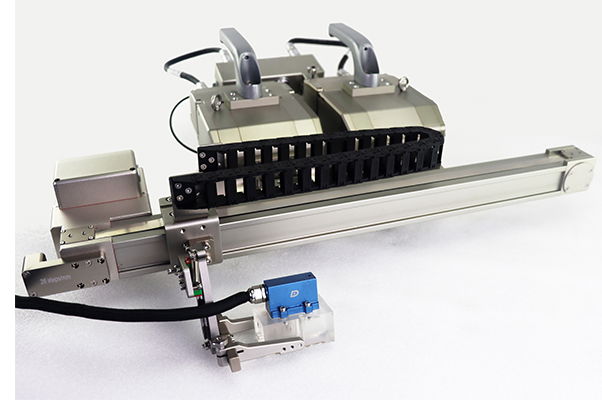

DSC-28 Multi-functional Automatic Crawler The DSC 28 multi-functional automatic crawler is a remote-controlled, magnetic wheel scanner, can run freely on ferromagnetic workpieces to realize ultrasonic detection. It is applied to large tank and pipeline weld detection, plate weld detection, material detection, corrosion detection and ultrasonic thickness measurement.
DSC-06

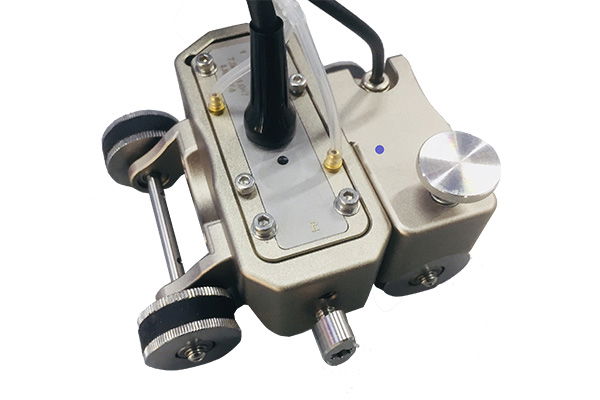

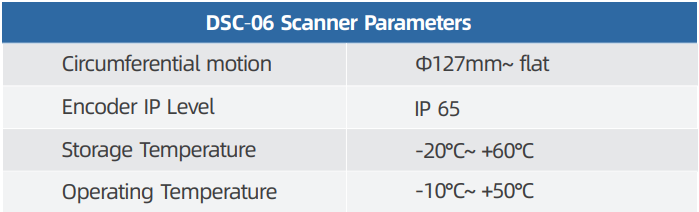

DSC-06 Corrosion Scanner · Material or corrosion inspection for large pipe and plate · Can use 64 or 128 elements PA probe,water filling as a wedge · Wheel encoder to record data · Optional magnetic wheel or rubber wheel · Probe height adjustable
